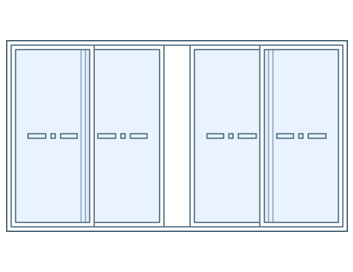

Frame your view perfectly with the bold clean lines of Suncoast Windows Sliding Doors.
Sliding Doors are available in a wide range of aesthetic styles, configurations and colours to suit any design application. They provide double the entry width of normal doors.
Quality design and construction adds strength, excellent security and durability for years of effortless use.
The Suncoast Windows Sliding Door range is available in our Signature, Essential and Commercial design options.
Request a quote Information Centre
Licensed manufacturers of Suncoast Windows's Windows & Doors may have different standard sizes.
Greater door heights may be possible
| Essential | Signature | Commercial | |
|---|---|---|---|
| Frame Size | 80mm, 140mm | 100mm, 166mm | 100mm, 150mm, 200mm, 250mm |
| Maximum Height | 2450mm | 2700mm | 3100mm |
| Maximum Width | 6246mm | 6246mm | 12000mm |
| Maximum Panel Width | 1350mm | 1350mm | 1800mm |
| Maximum Panel Weight | 50kg | 100kg | 160kg |
| Maximum Water Rating | 300pa | 600pa | 650pa |
| Maximum Wind Rating | 3300Pa ULS | 4500Pa ULS | 6000Pa ULS |
| Maximum Acoustic Rating | Rw32 | Rw44 | Rw34 |
| Maximum Glass Thickness - single glazed | 6.76mm | 12.76mm | 10.76mm |
| Maximum Bushfire Rating | BAL 40 | BAL 40 | BAL 40 |
| Lowest U-value - single glazed | 4.2 | 4.2 | 4.5 |
| Lowest U-value - double glazed | N/A | 2.9 | 3.3 |
Other colours available upon request.
GN305A
GY35LA
GA330A
GL329A
TexturaTM powdercoat finish is now supplied across the standard colour range.Textura is highly durable and will protect and extend the life of the product. During durability testing, Textura performed 625x better in an Abrasion Resistance Test.
Keyed version shown
Keyed version shown
Keyed version shown
