Pivot

Product Description

Suncoast Windows pivot doors are all class. Like all our doors, they can be complemented with Hi -lites, Side -lites and other Suncoast Windows products. Or, they can stand alone. The ideal choice for restricted opening spaces, our pivot doors create a striking entrance in any context.

The Suncoast Windows Pivot Door range is available in our Commercial design option.

Features

Designed to fit almost any context including small balconies and other areas with restricted opening space
Consistent aesthetic with 50mm deep rails that match stile depth
Sleek and modern finish with concealed fixings
Maximum strength and rigidity courtesy of heavy duty 50mm sash
Stainless steel fixings reducing the chance of corrosion
Superior security with deadlock included as a standard feature

Options

Variety of colours (including timber alternative)
Frameless sash option available
Glass options (Including Double Glazing)
Thermal and acoustic insulation available with single and double glazing options
Colonial, Federation or custom bars
Key locks
Insect or security screens

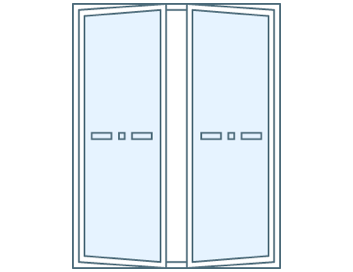

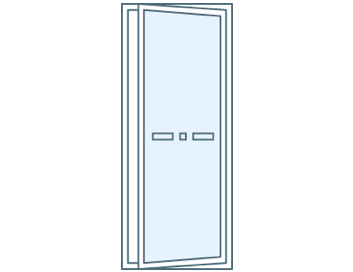

Typical Configurations

Performance Parameters

	Commercial
Frame Size	100mm
Maximum Height	2700mm
Maximum Width	2000mm
Maximum Panel Width	1500mm
Maximum Glass Thickness - single glazed	12.38mm
Maximum Glass Thickness - double glazed	24mm

Frame Colours

Other colours available upon request.

Textura® Black

GN305A

Textura® Silver

GY35LA

Textura® White

GA330A

Textura® Monument

GL329A

TexturaTM powdercoat finish is now supplied across the standard colour range.Textura is highly durable and will protect and extend the life of the product. During durability testing, Textura performed 625x better in an Abrasion Resistance Test.
