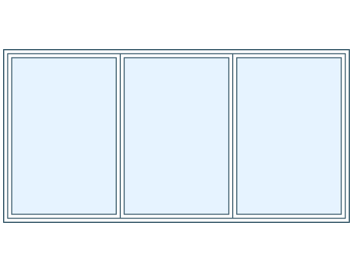

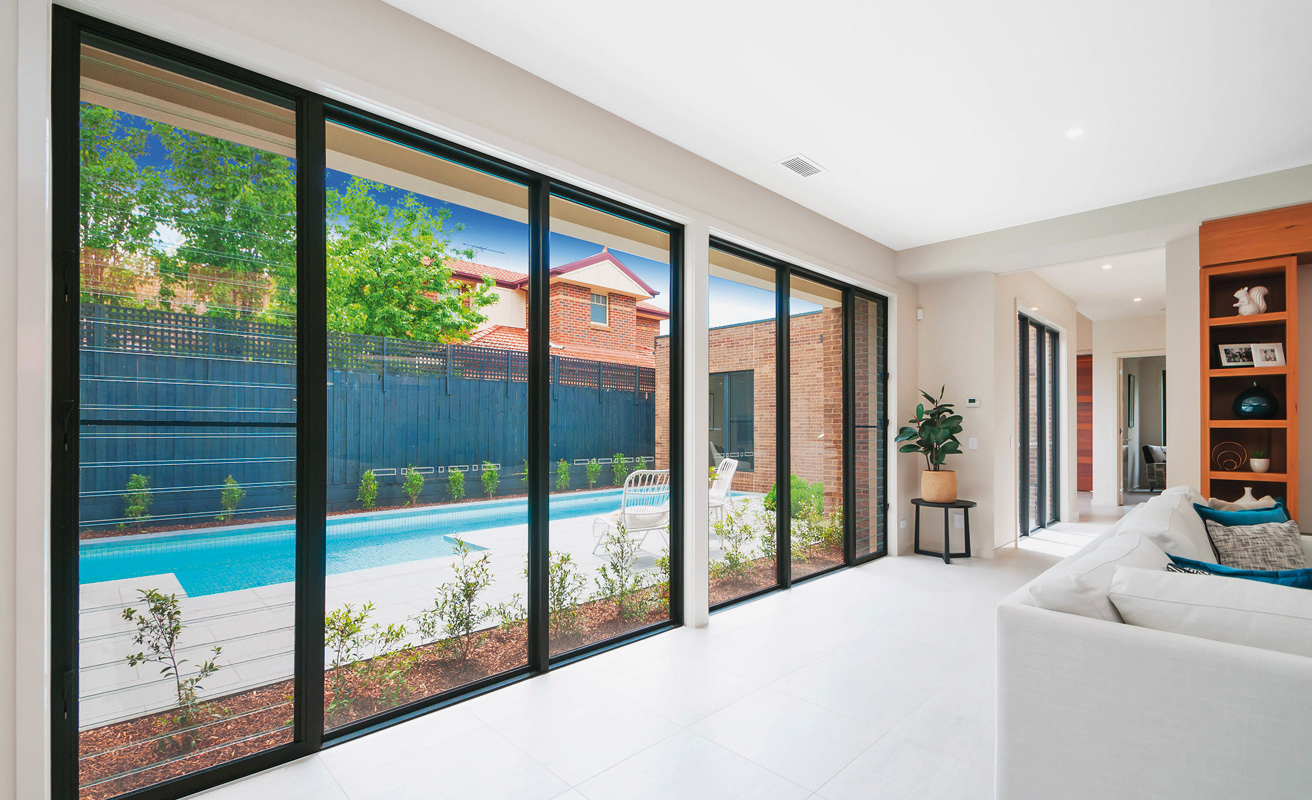

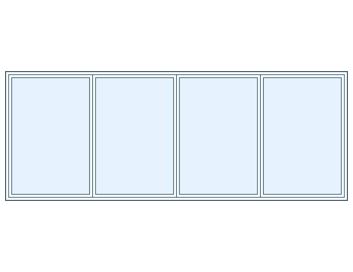

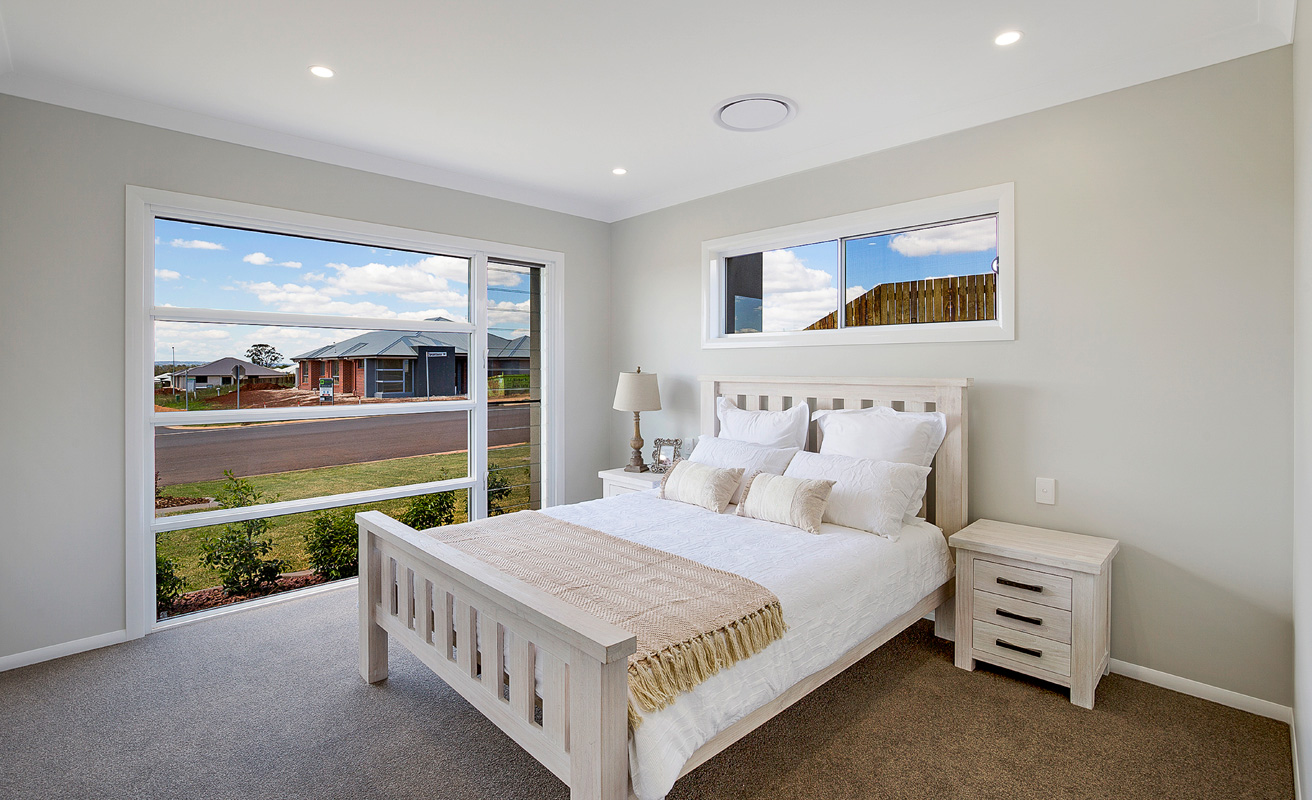

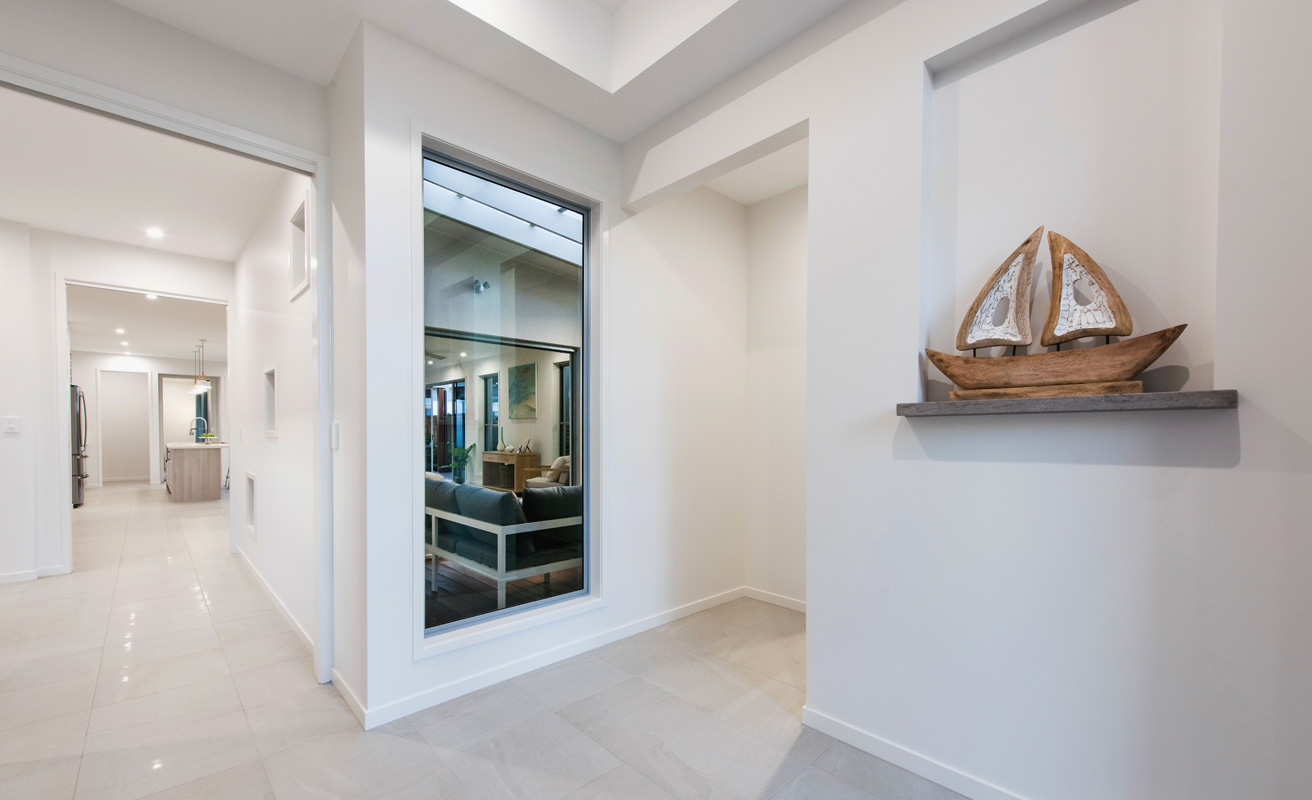

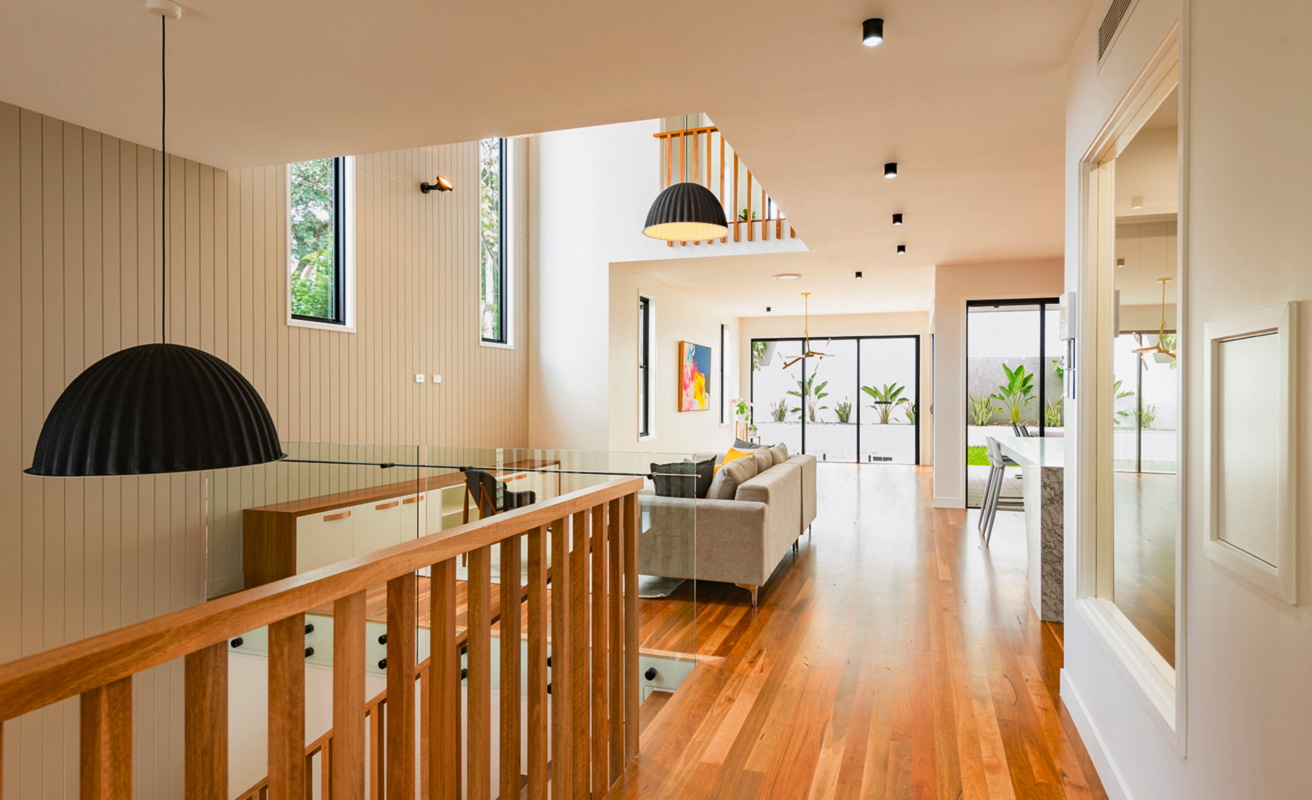

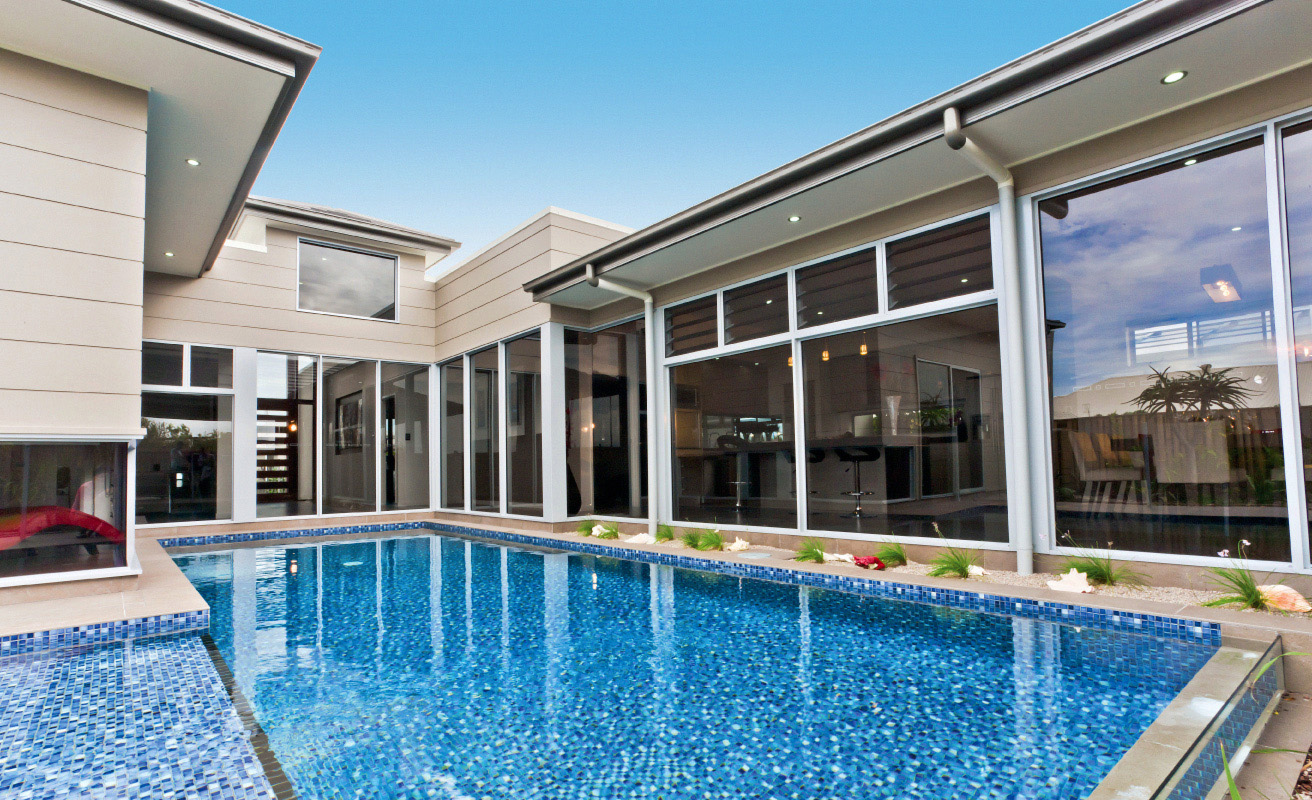

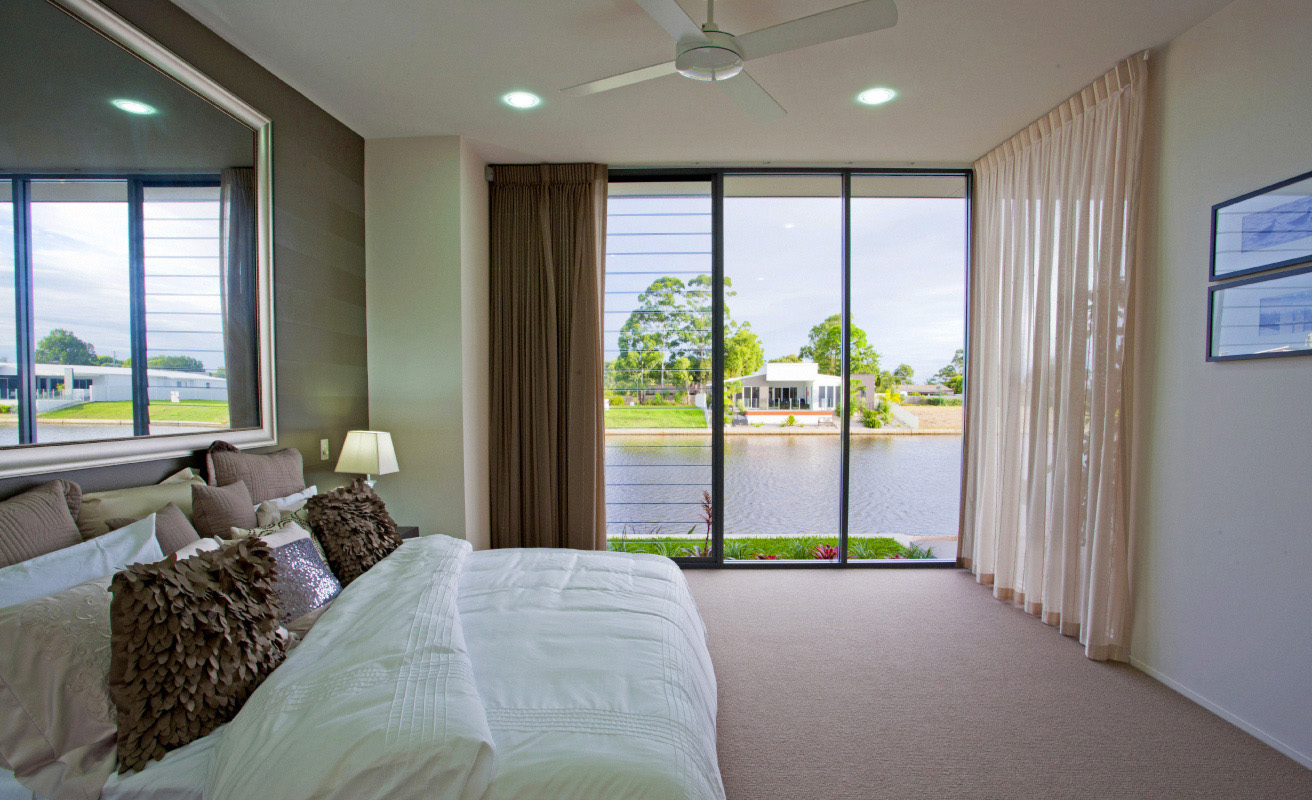

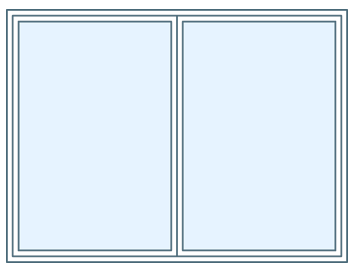

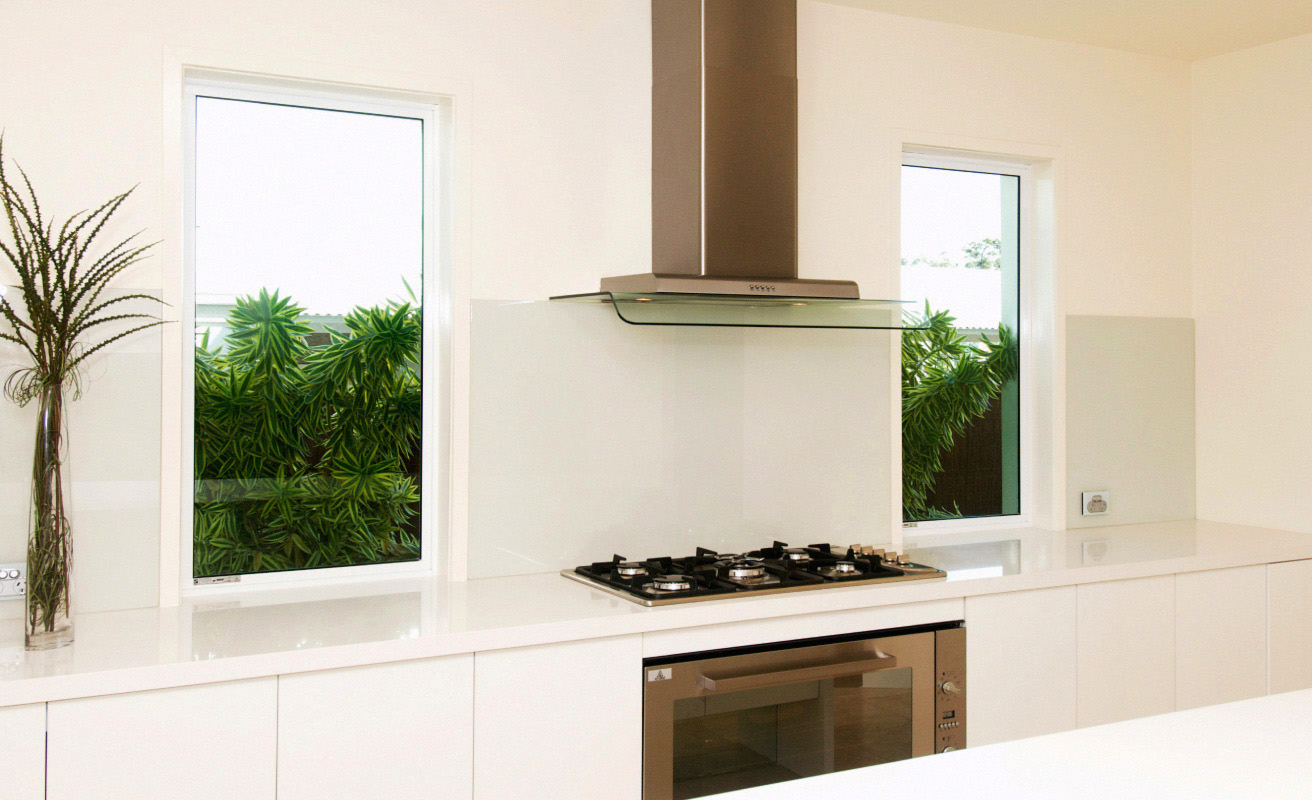

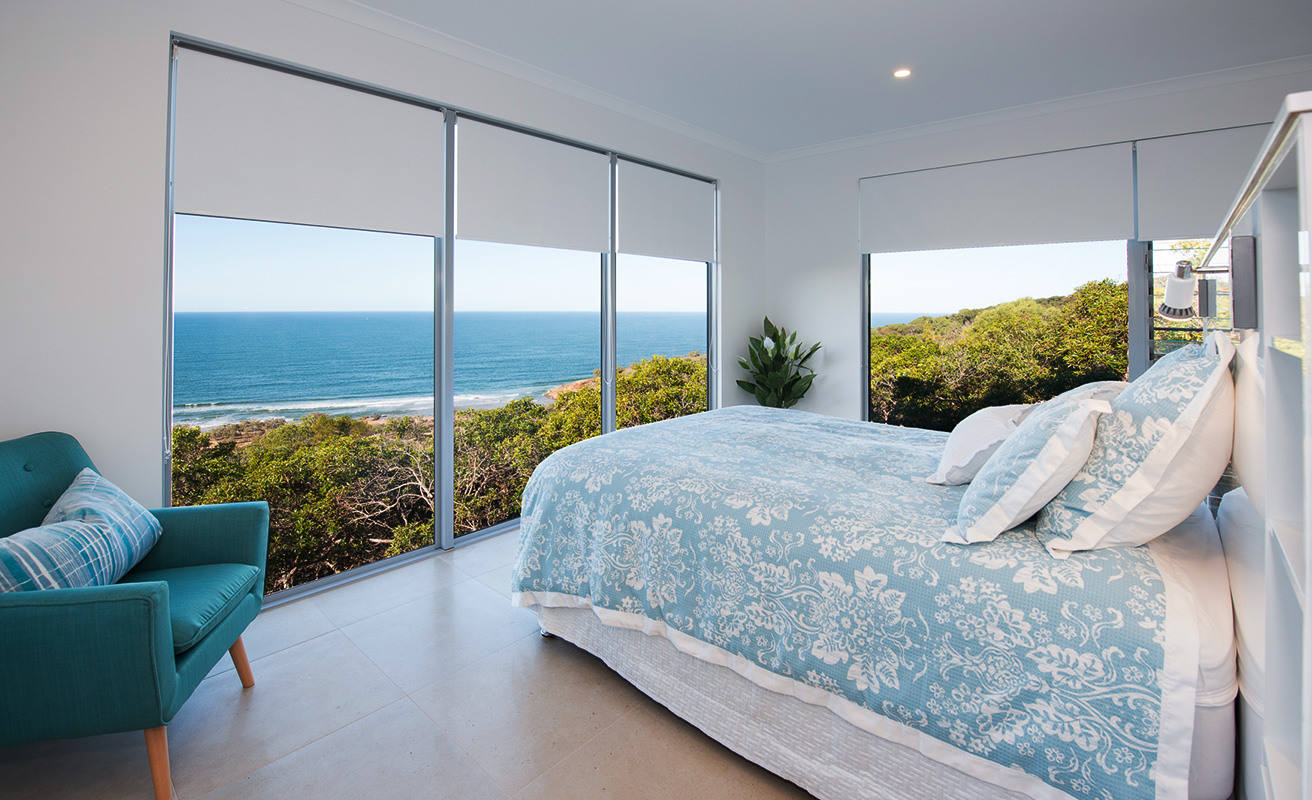

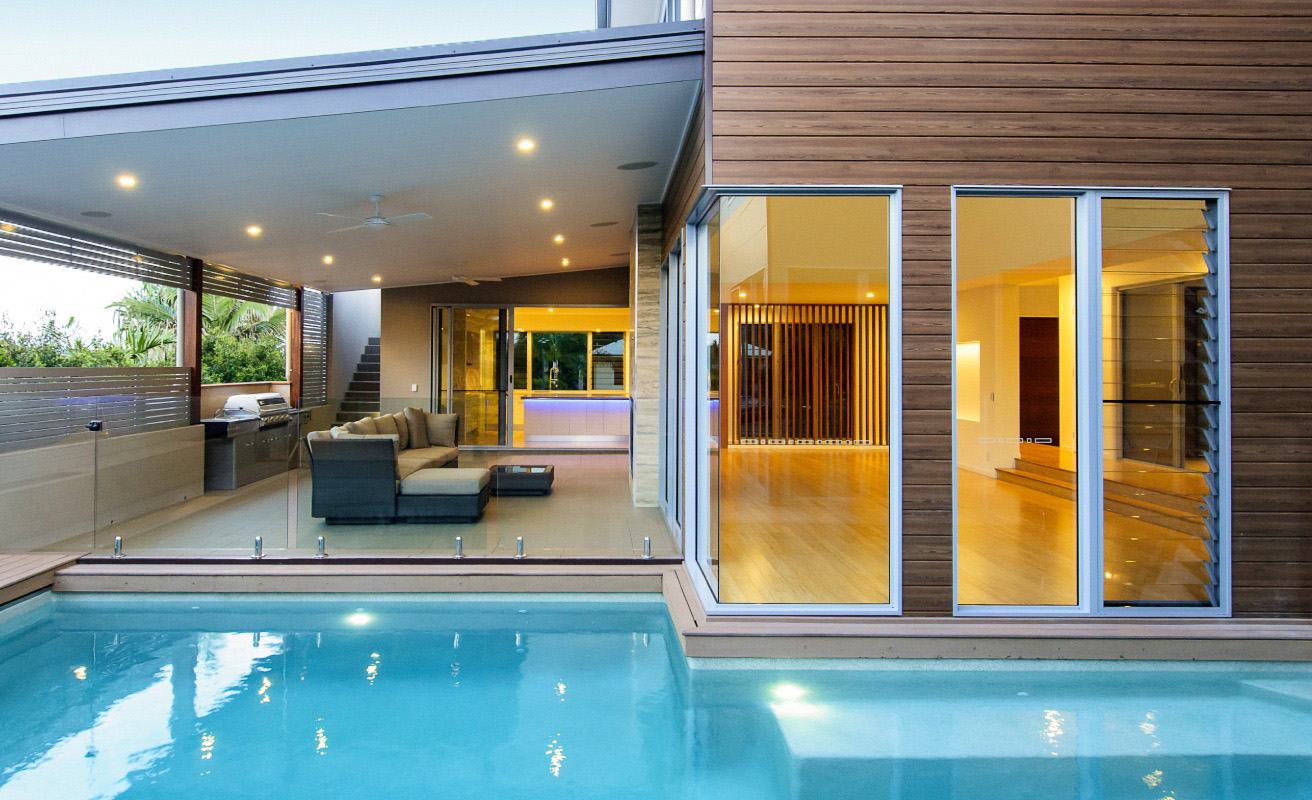

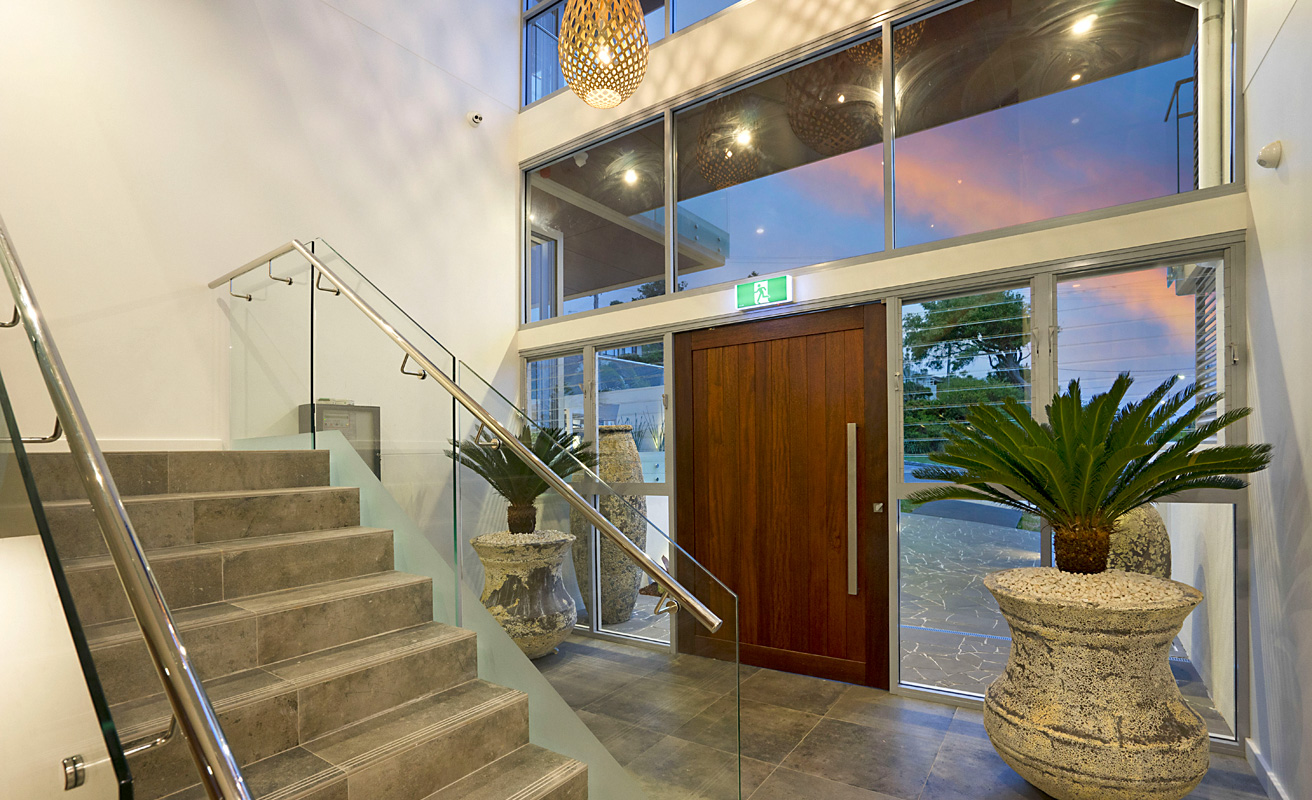

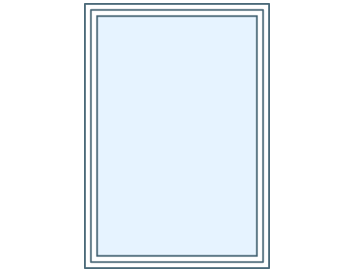

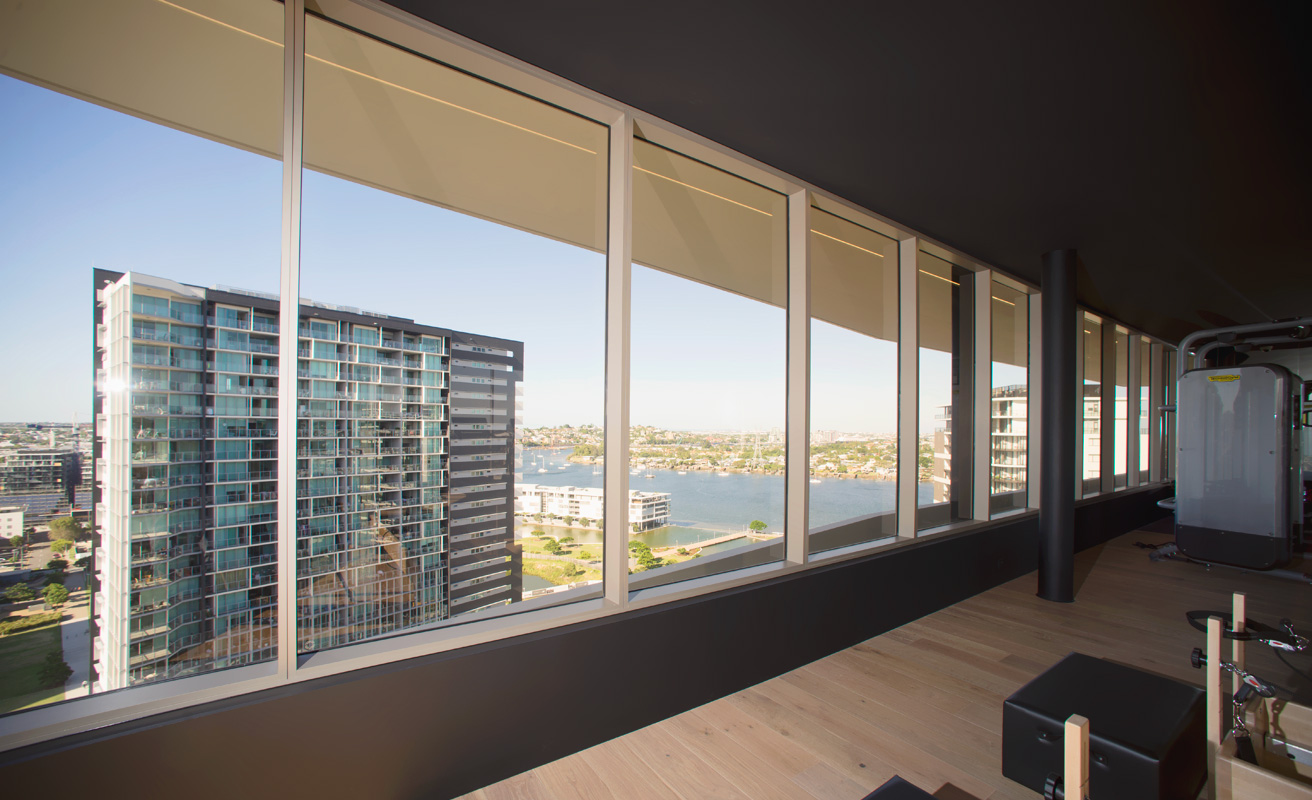

Fixed windows are stationary windows often used to compliment other window and door suites. Suncoast Windows fixed windows allow you to incorporate maximum natural light, without compromising your design or view.

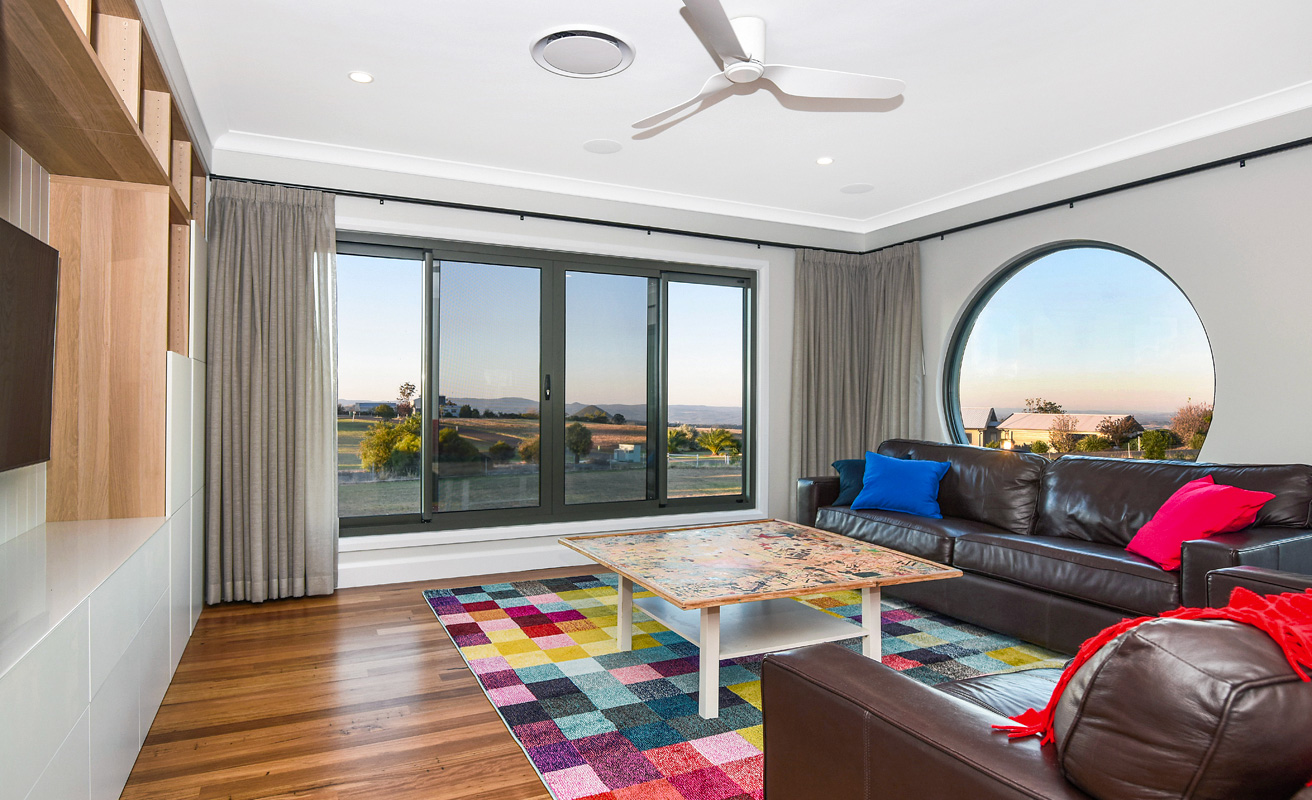

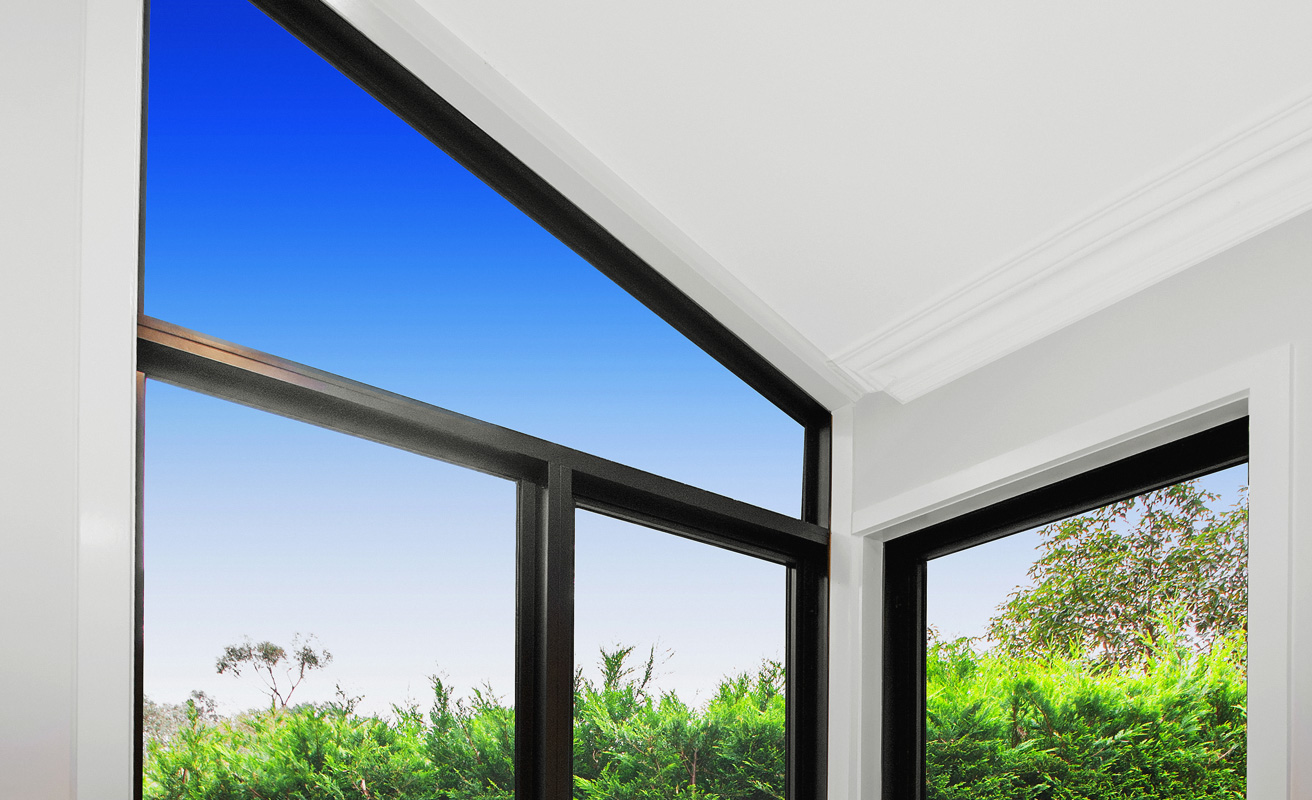

Windows of unusual shapes and sizes are nothing out of the ordinary for Suncoast Windows. Curved, raked, arched, faceted, stepped and decorative window shapes along with curved glass and glass blocks are all available to suit any architectural style.
All windows and doors are made to architectural specifications allowing your individual tastes to show through.
The Suncoast Windows Fixed Lite, Rakes and Arches range is available in our Signature, Essential and Commercial design options.
Request a quote Information Centre
For Rakes and Arches please confirm with a Suncoast Windows representative.
| Essential | Signature | Commercial | |
|---|---|---|---|
| Frame Size | 52mm | 100mm | 67mm, 100mm, 150mm |
| Maximum Height | 3010mm | 5325mm | - |
| Maximum Panel Width | 3010mm | 6400mm | - |
| Maximum Panel Weight | N/A | N/A | - |
| Maximum Water Rating | 450pa | 600pa | - |
| Maximum Wind Rating | 4500Pa ULS | 6000Pa ULS | - |
| Maximum Acoustic Rating | Rw35 | Rw38 | - |
| Maximum Glass Thickness - single glazed | 12.38mm | 13.52mm | - |
| Maximum Glass Thickness - double glazed | 24mm | 24mm | - |
| Maximum Bushfire Rating | BAL 40 | BAL 40 | - |
| Lowest U-value - single glazed | 3.9 | 4.3 | - |
| Lowest U-value - double glazed | 2.0 | 2.5 | - |
Other colours available upon request.
GN305A
GY35LA
GA330A
GL329A
TexturaTM powdercoat finish is now supplied across the standard colour range.Textura is highly durable and will protect and extend the life of the product. During durability testing, Textura performed 625x better in an Abrasion Resistance Test.
