Awning

Product Description

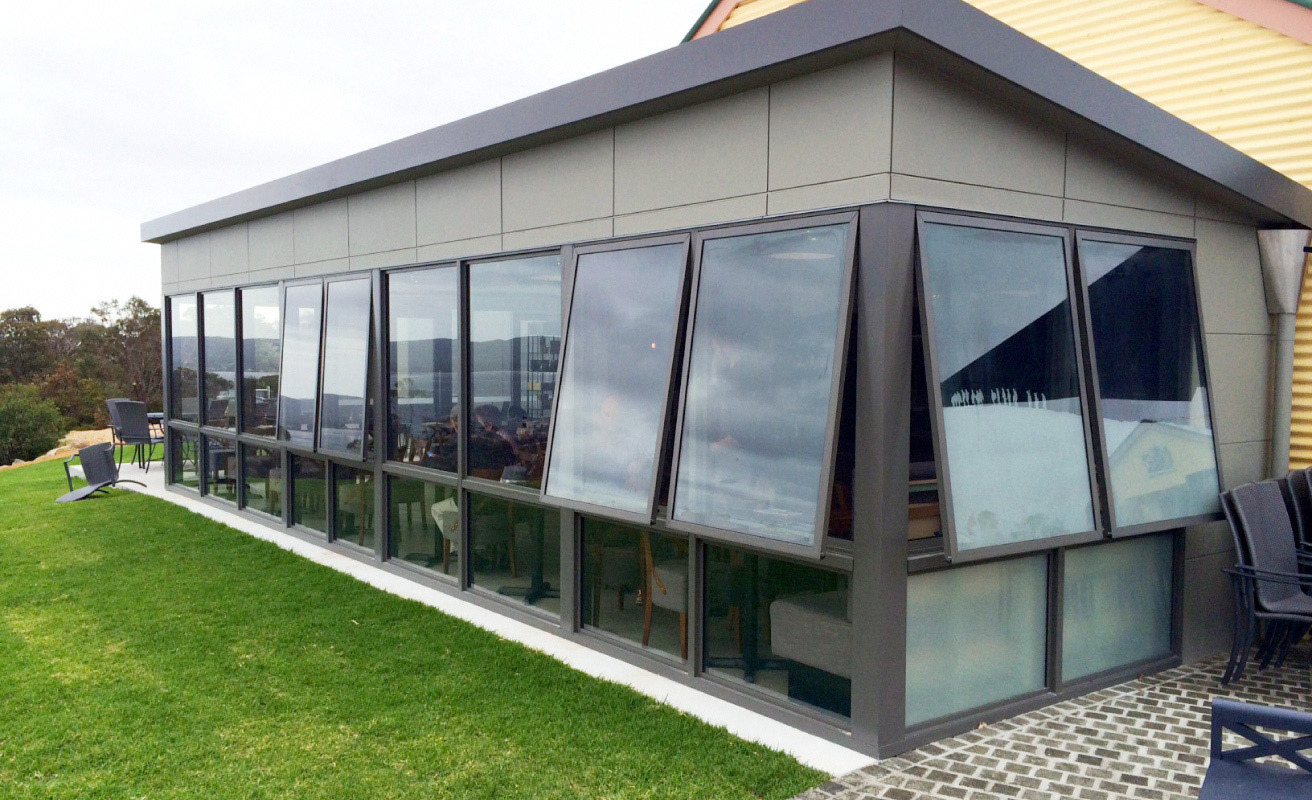

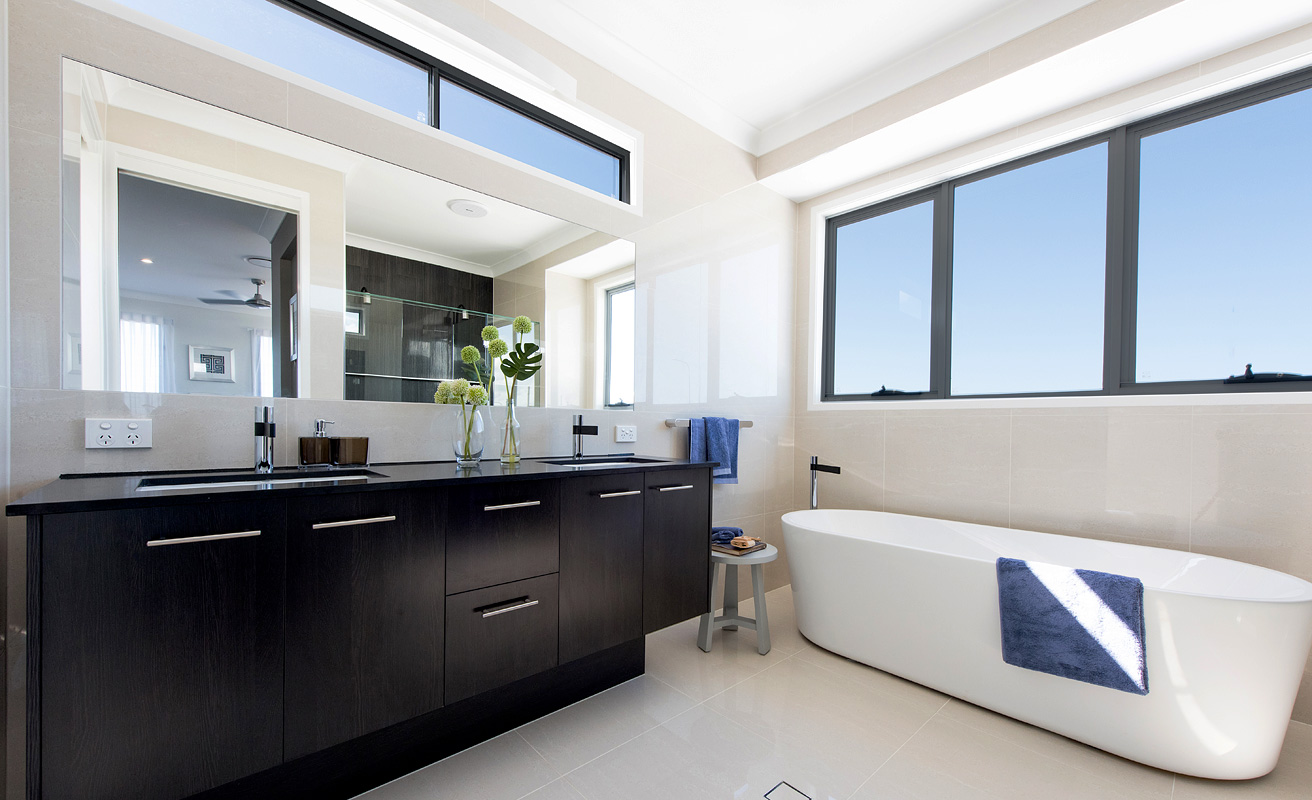

Awning windows are ideal for use with fixed windows and provide a stylish option to suit the traditional or contemporary home. Awning windows are hinged from the top opening outward, letting air circulate freely. Tending to operate in reverse, the awning lets out more air than it lets in, which makes it perfect for kitchen and bathroom applications.

The Suncoast Windows Awning range is available in our Signature, Essential and Commercial design options.

Features

Awning windows can be proportioned to almost any dimension, allowing them to stand alone, stack vertically or be combined horizontally
Modern slimline design

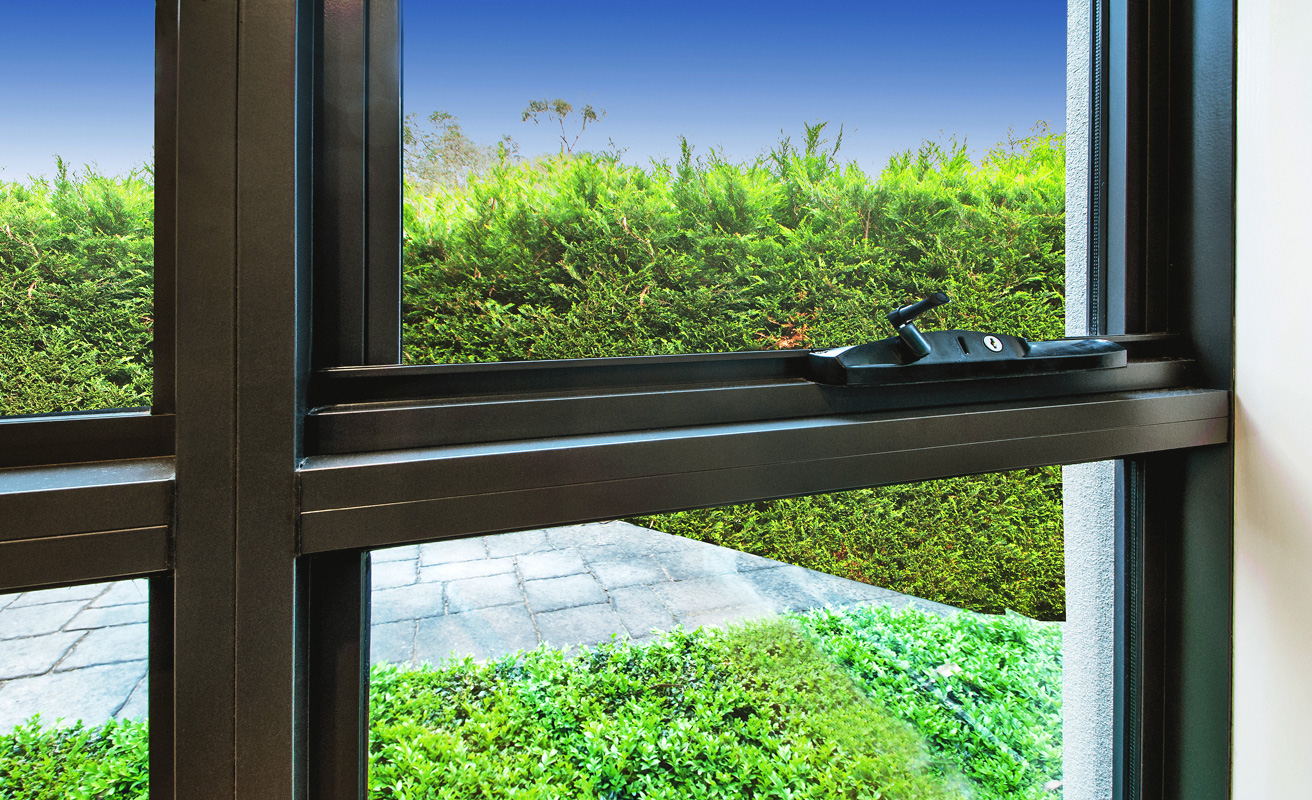

Optional lockable gear winder prevents window closing in high winds and offers added security
Traditional solid sash giving heritage appearance
Full joint sealing maximises weather proofing performance
Limited opening capability for multi storey applications
High rating for energy performance due to superior sealing action
52 mm wide standard frame
Up to 125mm wide frame
Australian design award winner
Insect and security screens removable from inside only for ease of cleaning and emergency exit

Options

Colonial, Federation or custom bars
Variety of colours (including timber alternative)
Glass options – Suitable for thicker glass panes up to 25mm (Including Double Glazing)
Insulated glass units (double glazing) for thermal and acoustic applications
Integrated screening does not interfere with winder
Energy efficient / High performance system options
Key locks
Insect or security screens
Double Glazing

Standard Sizes

Download Signature Awning Windows Standard Sizes

Queensland

Download Standard Sizes for All Windows and Doors

Queensland

Licensed manufacturers of Suncoast Windows's Windows & Doors may have different standard sizes.

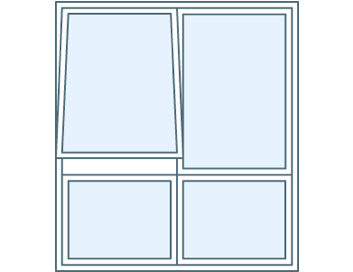

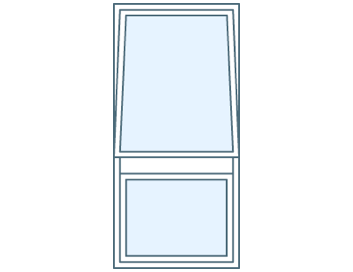

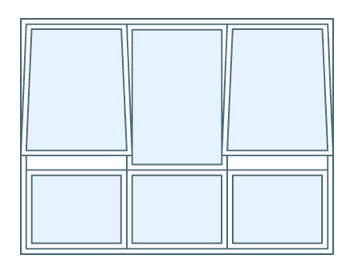

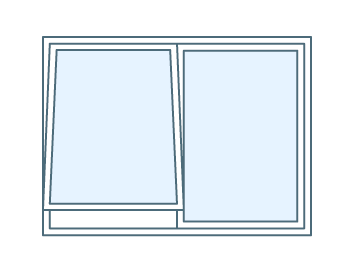

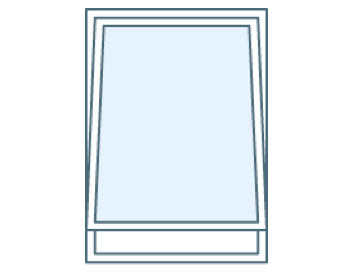

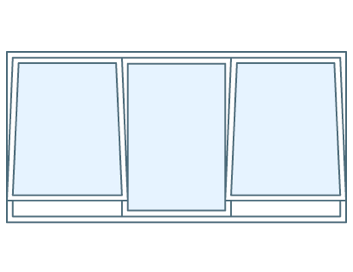

Typical Configurations

Performance Parameters

	Essential	Signature	Commercial
Frame Size	52mm	100mm	100mm
Maximum Panel Height	2400mm	2400mm	2400mm
Maximum Panel Width	2150mm	2150mm	2150mm
Maximum Panel Weight	74kg	74kg	74kg
Maximum Water Rating	600pa	600pa	600pa
Maximum Wind Rating	4500Pa ULS	4500Pa ULS	4500Pa ULS
Maximum Acoustic Rating	Rw37	Rw38	N/A
Maximum Glass Thickness - single glazed	12.76mm	12.76mm	12.76mm
Maximum Glass Thickness - double glazed	24mm	24mm	24mm
Maximum Bushfire Rating	BAL 40	BAL 40	BAL 40
Lowest U-value - single glazed	5.0	5.5	N/A
Lowest U-value - double glazed	3.3	3.8	N/A

Frame Colours

Other colours available upon request.

Textura® Black

GN305A

Textura® Silver

GY35LA

Textura® White

GA330A

Textura® Monument

GL329A

TexturaTM powdercoat finish is now supplied across the standard colour range.Textura is highly durable and will protect and extend the life of the product. During durability testing, Textura performed 625x better in an Abrasion Resistance Test.
